Scatterplot

Problem

You want to make a scatterplot.

Solution

Suppose this is your data:

set.seed(955)
# Make some noisily increasing data
df <- data.frame(xvar = 1:20 + rnorm(20,sd=3),
                 yvar = 1:20 + rnorm(20,sd=3),
                 zvar = 1:20 + rnorm(20,sd=3))
#         xvar         yvar        zvar
# -4.252354091  3.473157275 -2.97806724
#  1.702317971  0.005939612 -1.16183118
#     ...
# 17.793359218 19.718587761 14.11978650
# 19.319909163 19.647899863 13.76377001

Basic scatterplots

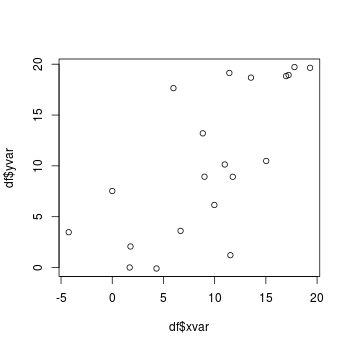

# Plot the points using the vectors xvar and yvar
plot(df$xvar, df$yvar)

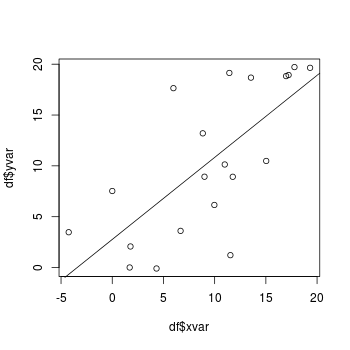

# Add a regression line
fitline <- lm(df$yvar ~ df$xvar)
abline(fitline)

Scatterplot matrices

It is also possible to make a matrix of scatterplots if you would like to compare several variables.

See this for a way to make a scatterplot matrix with r values.

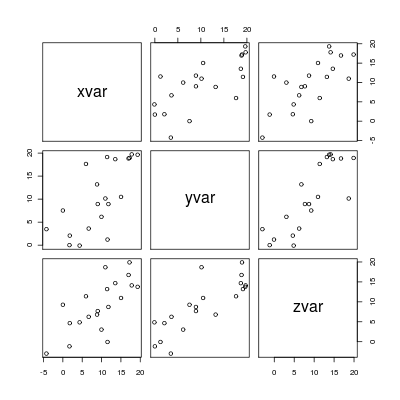

# A scatterplot matrix
plot(df[,2:4])

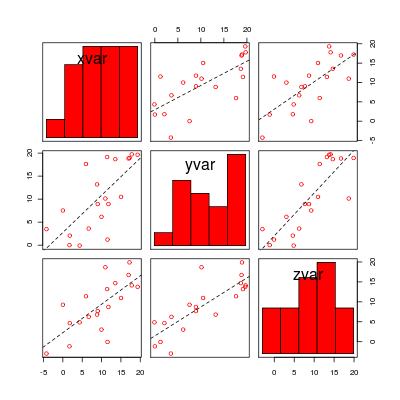

# Another way of making a scatterplot matrix, with regression lines
# and histogram/boxplot/density/qqplot/none along the diagonal
library(car)
scatterplot.matrix(df[,2:4],
                   diagonal="histogram",
                   smooth=FALSE)

To calculate the corresponding correlation matrix, see ../../Statistical analysis/Regression and correlation.

To visualize the correlation matrix, see ../Correlation matrix.
